Triumph TR4 Skid pan and bash shield

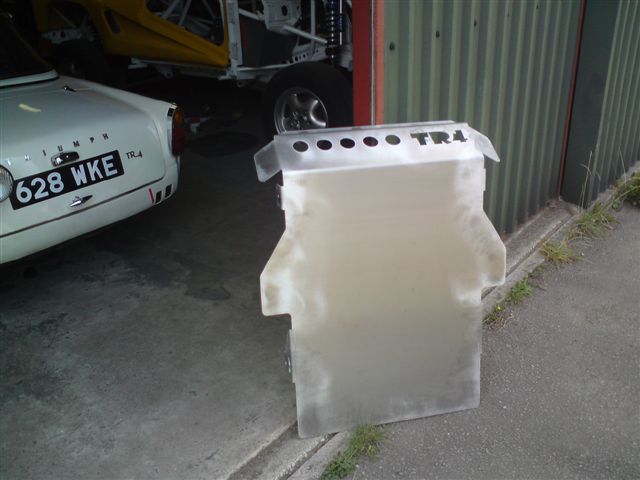

This is a Skid pan for the Triumph TR4.

Waiting to be fitted and abused at the rally's
Waiting to be fitted and abused at the rally’s



made from tough 6082 alloy the same as we use on the Dakar cars, this on is light and protects the sump and lower arms from damage on the jumps.

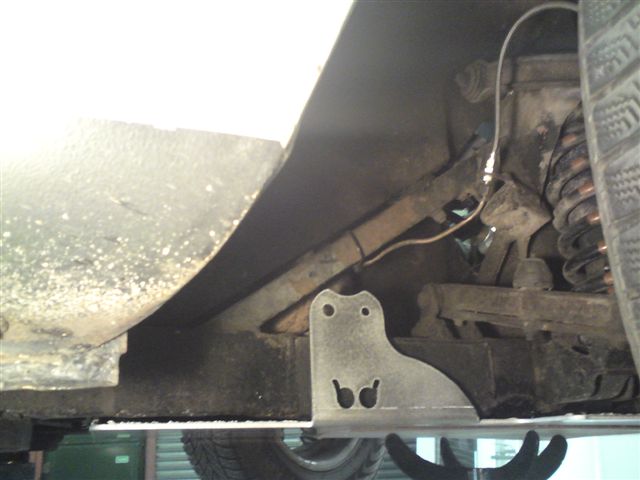

Triumph bash shield fitting to the chassis
Triumph bash shield fitting to the chassis

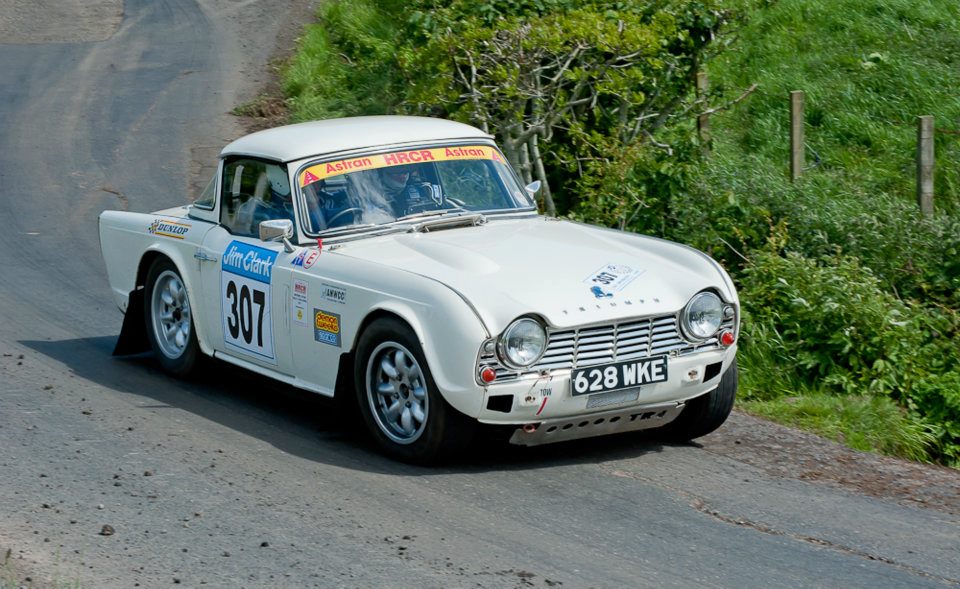

And here it is in action

Fitted to the trick little triumph TR4
Fitted to the trick little triumph TR4

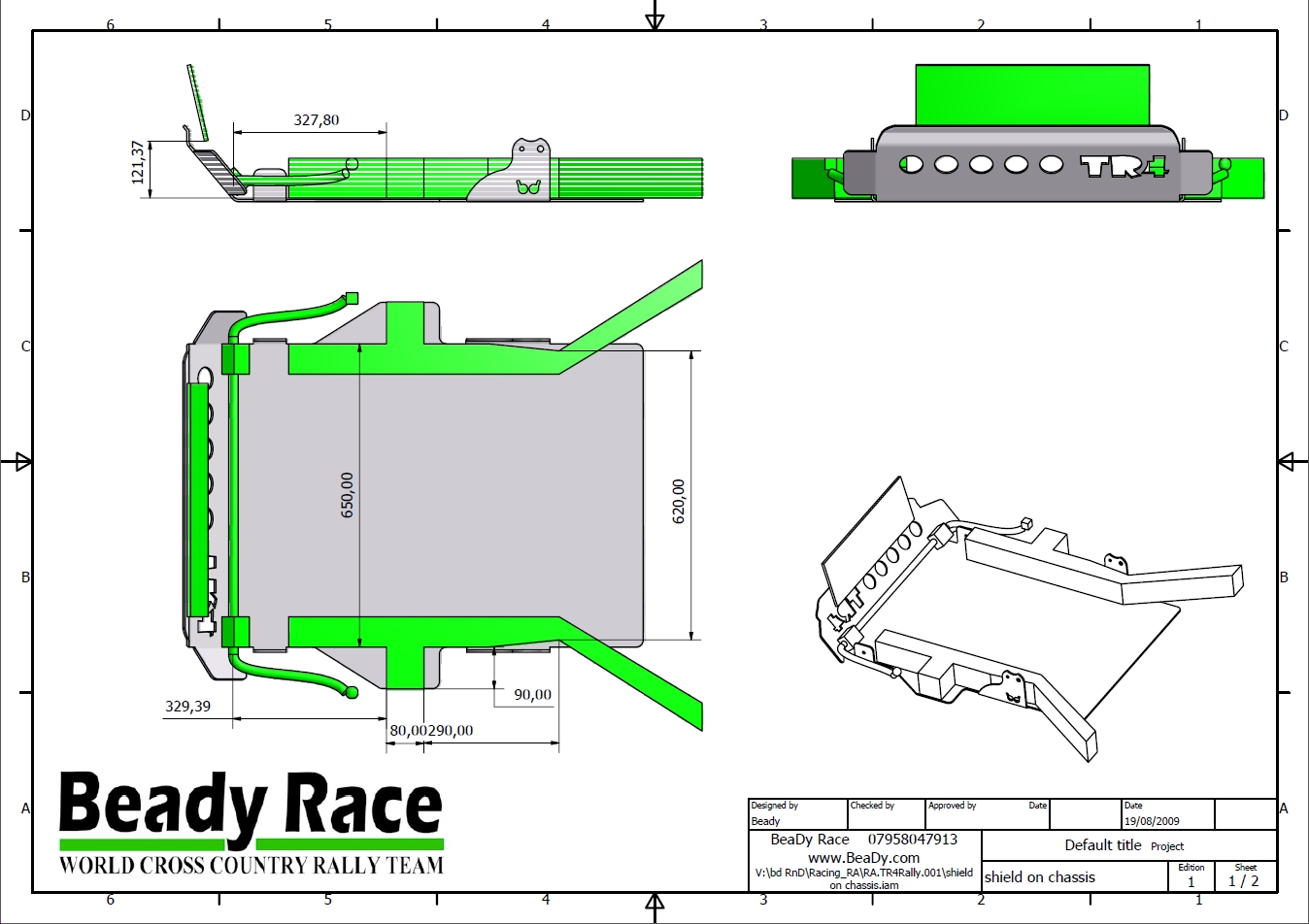

Here is the drawing and how it fits to the chassis
Here is the drawing and how it fits to the chassis
